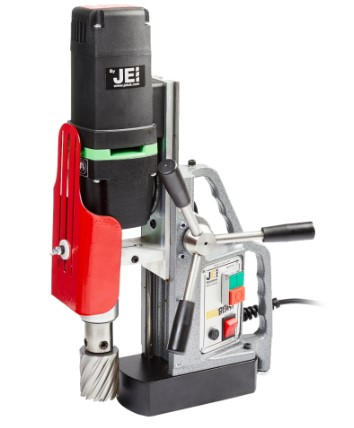

JEI HM50 Magbeast Drill 110V

Stock Code: PTJMHM50110
MPN: DRILL-HM50/1
EAN / GTIN: 5060989227787

Descriptions

A durable, dependable heavy duty 2 morse taper drilling machine.

Heavy duty 1150 W motor – enables larger cutting capacity.
Weighs only 14 kg with a 50 mm cutter capacity – unrivalled weight to cutting capacity ratio.
150mm total drill travel – facility to use extra-long cutters.

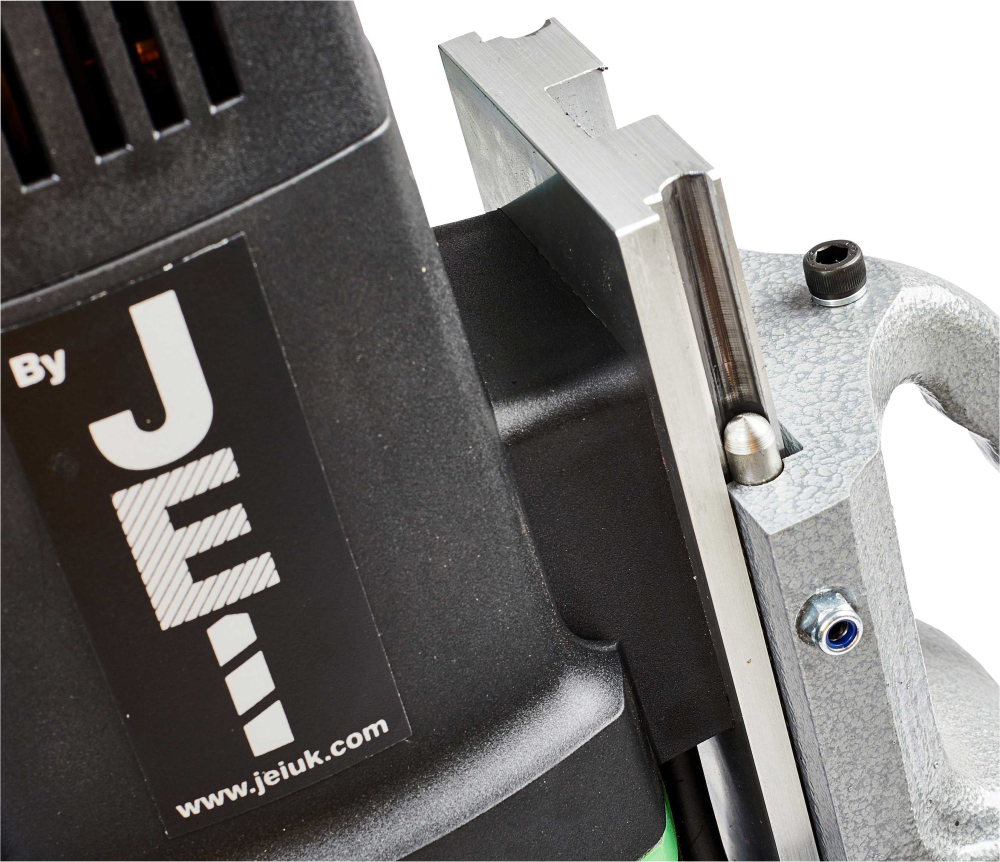

Maintenance friendly twin slide rails – no wearing parts and adjustment free operation.
Spoke handles can be fitted on left or right side for operator convenience (applies to all HM50 models).

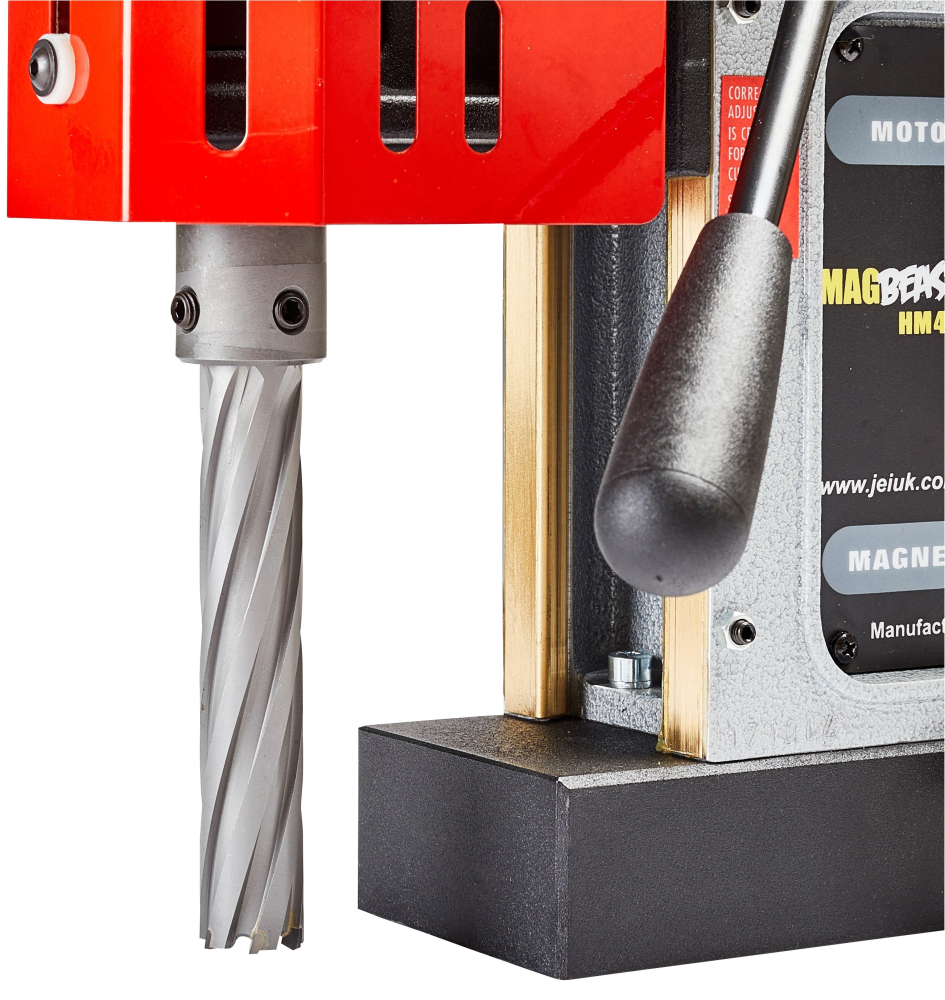

Rely on the expert capabilities of the MagBeast® HM50. Featuring extra long drill travel, ideal for 100 mm long cutters, and a 50mm diameter cutting capacity.

SPECIFICATIONS

Model/strong HM50

Spindle MT2

Weight 14Kg

Max Stroke 180mm

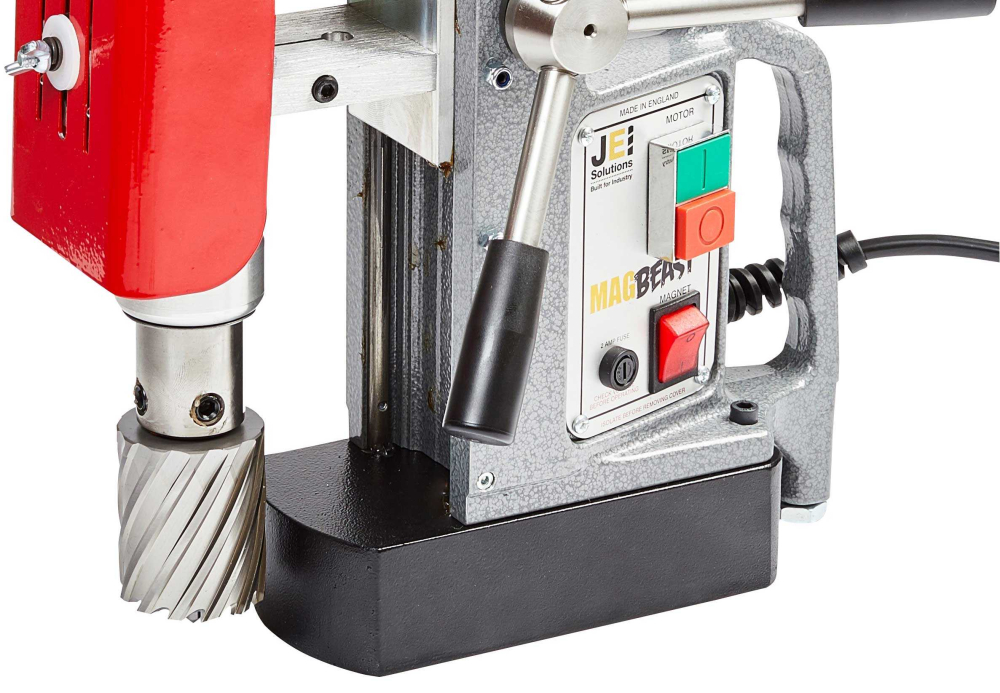

Cutter Capacity 50mm x 4" depth of cut

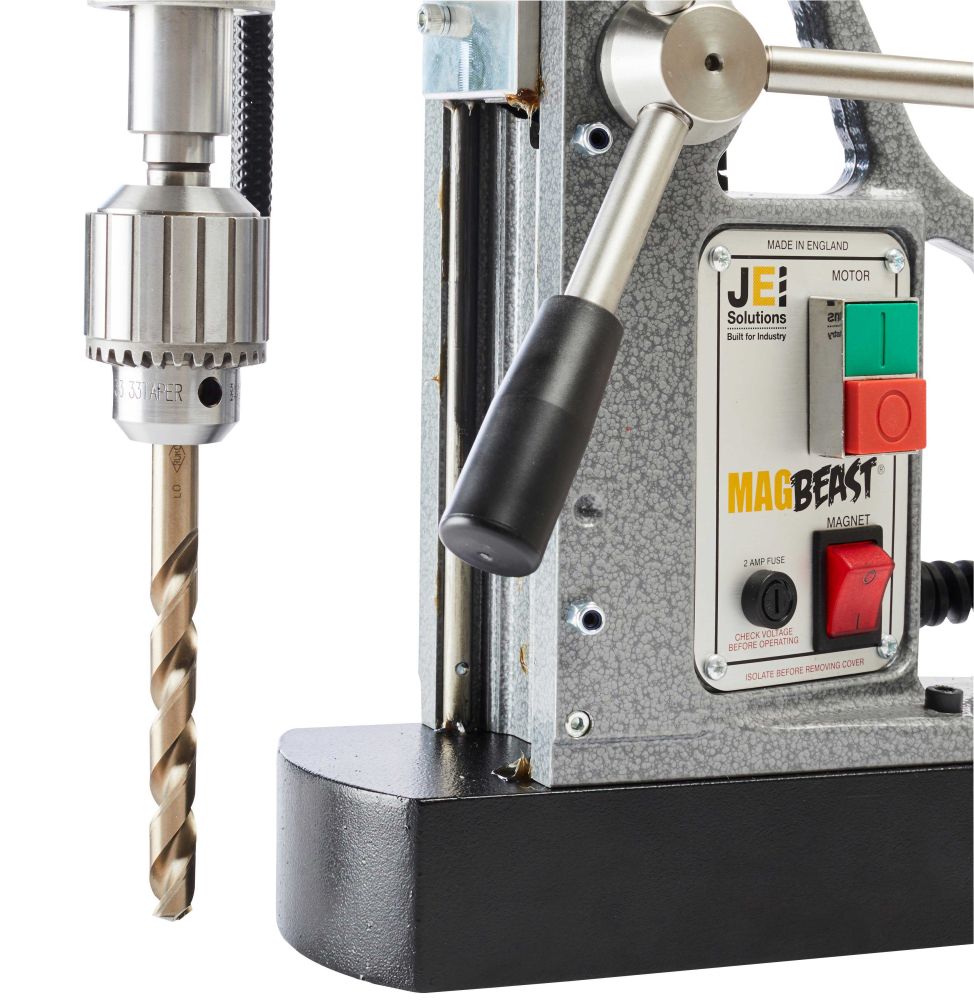

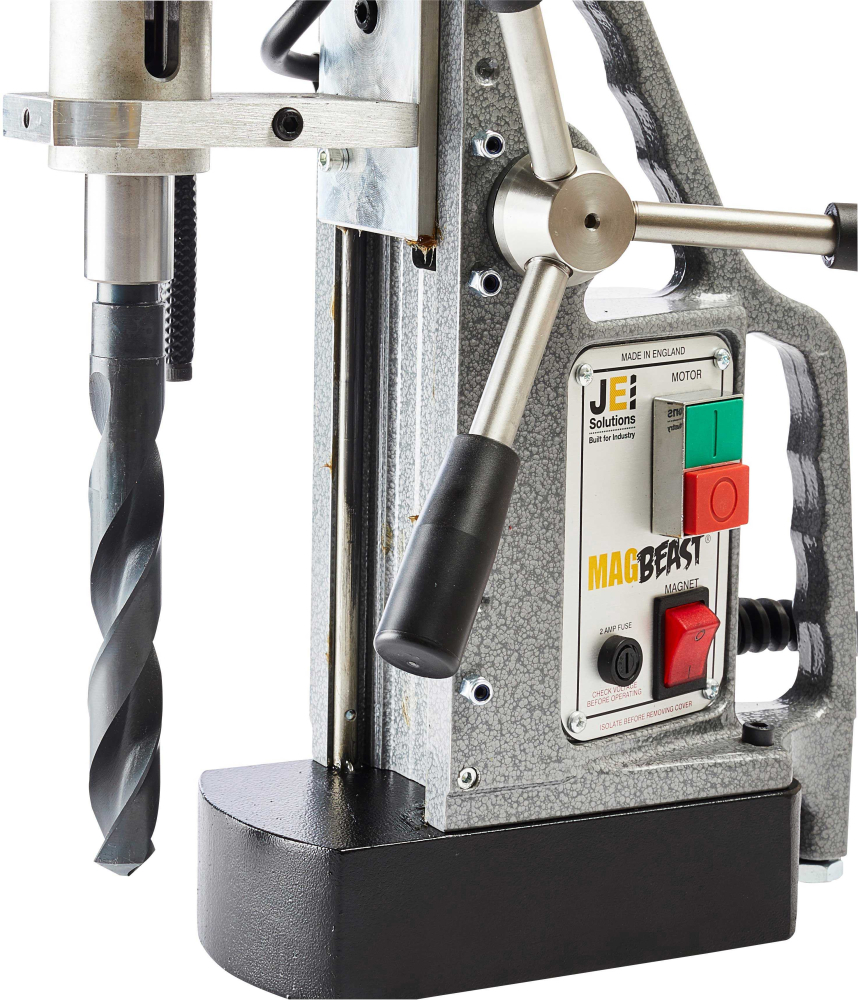

Twist Drill Capacity 13mm with 2MT chuck/23mm with 2MT twist drill

Countersink Capacity 40mm

Reaming Capacity 22 mm (19 mm shank)

Motor 1150 watts

RPM No load 465/270 RPM. Loaded 250/450 RPM

Height min/max 380mm/560mm
