Stock Code: PTJT35220
MPN: DRILL-T35/2
£366.58 (exc VAT) per 1
£439.89 (inc VAT)
Quantity: - +

A new economical, lightweight Magnetic Drilling Solution from JEI

Designed for accurate. practical hole making with both TCT and HSS Cutters

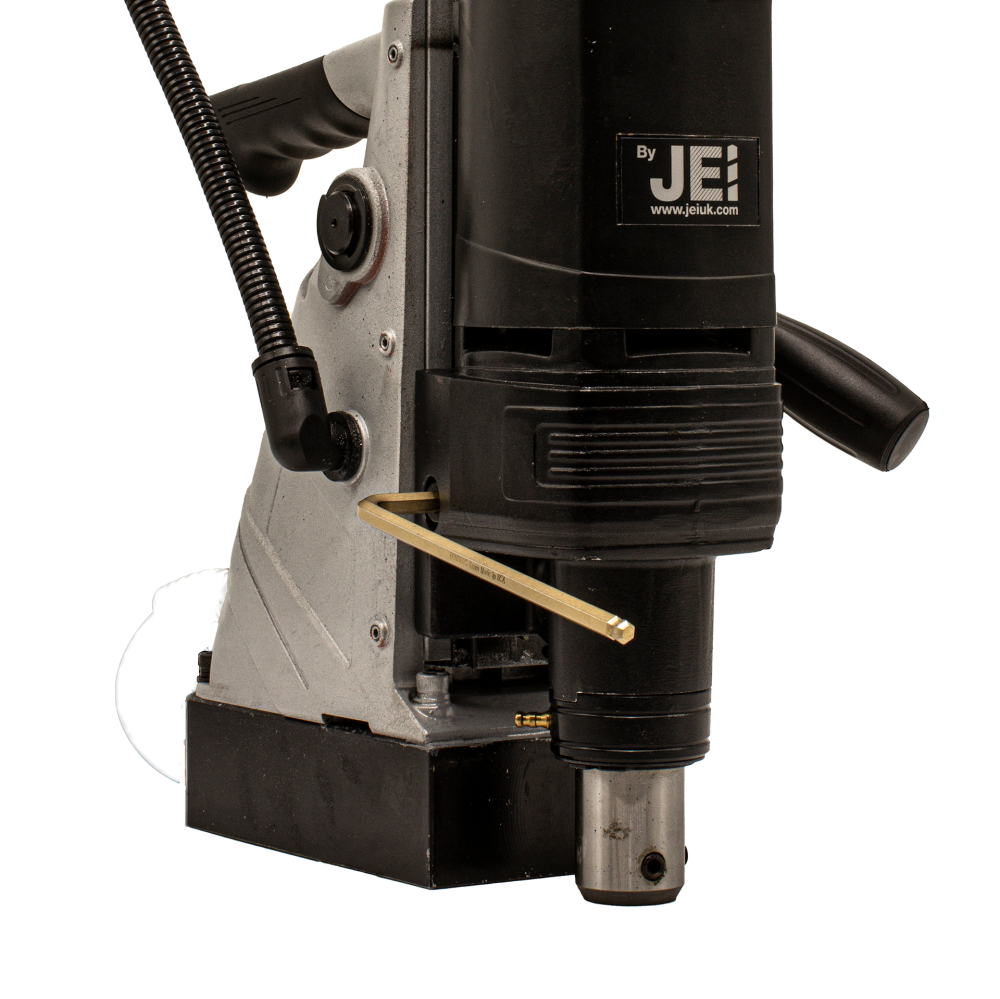

  • Fully adjustable motor slide for added versatility of use

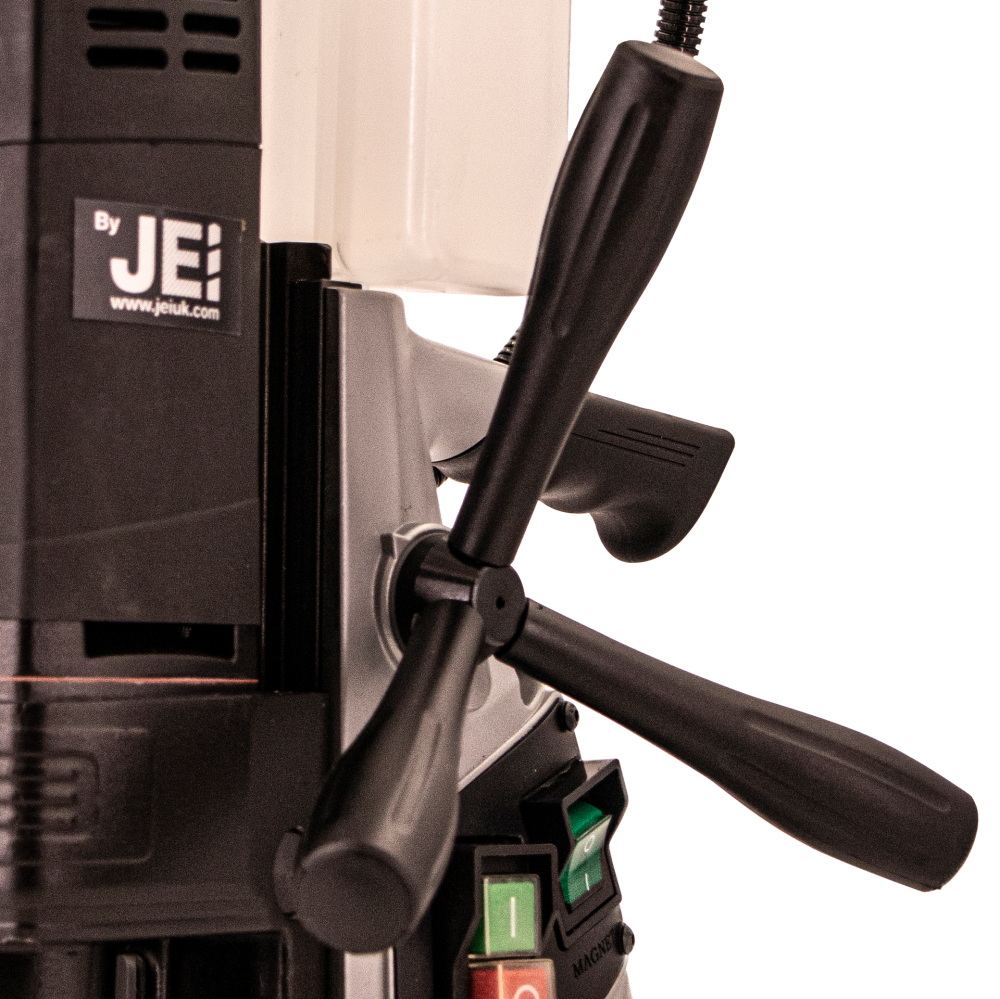

  • Modern moulded shape with easy access open handle
  • 1100 Watt Powerful Motor

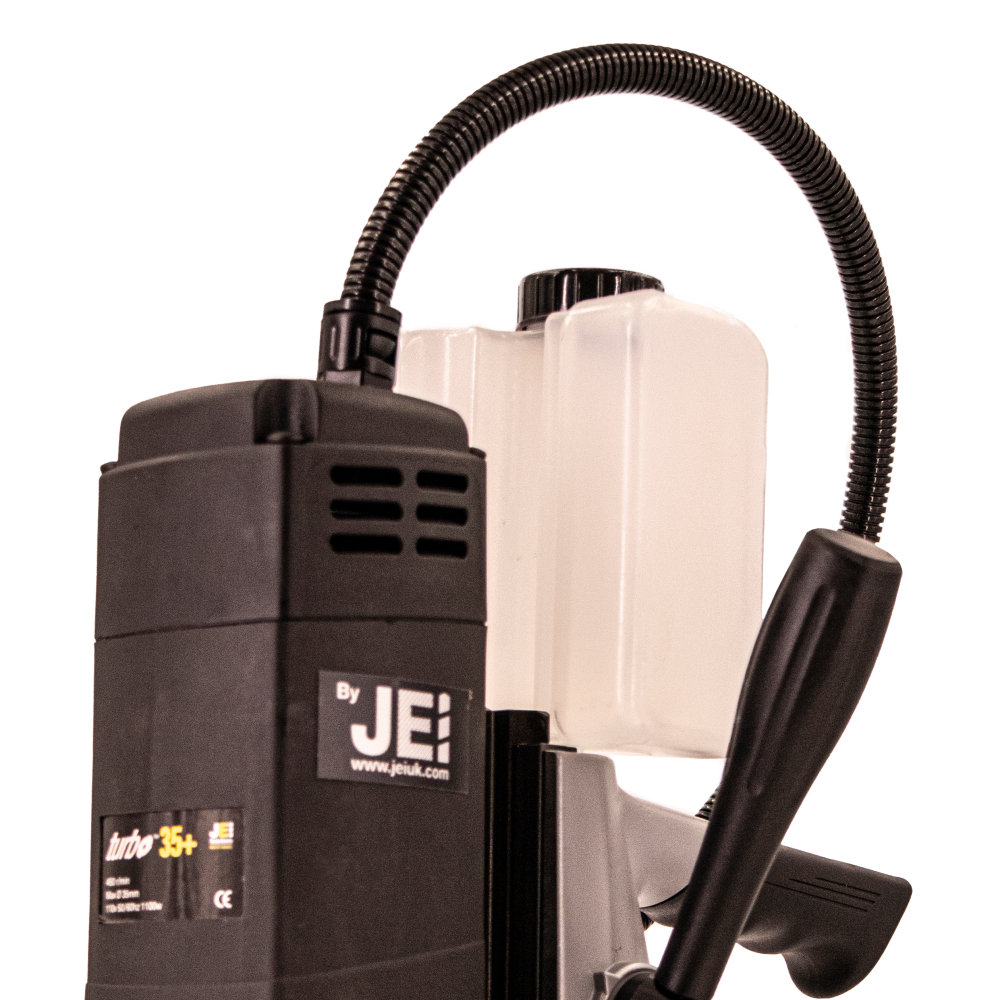

  • Large Capacity Coolant tank

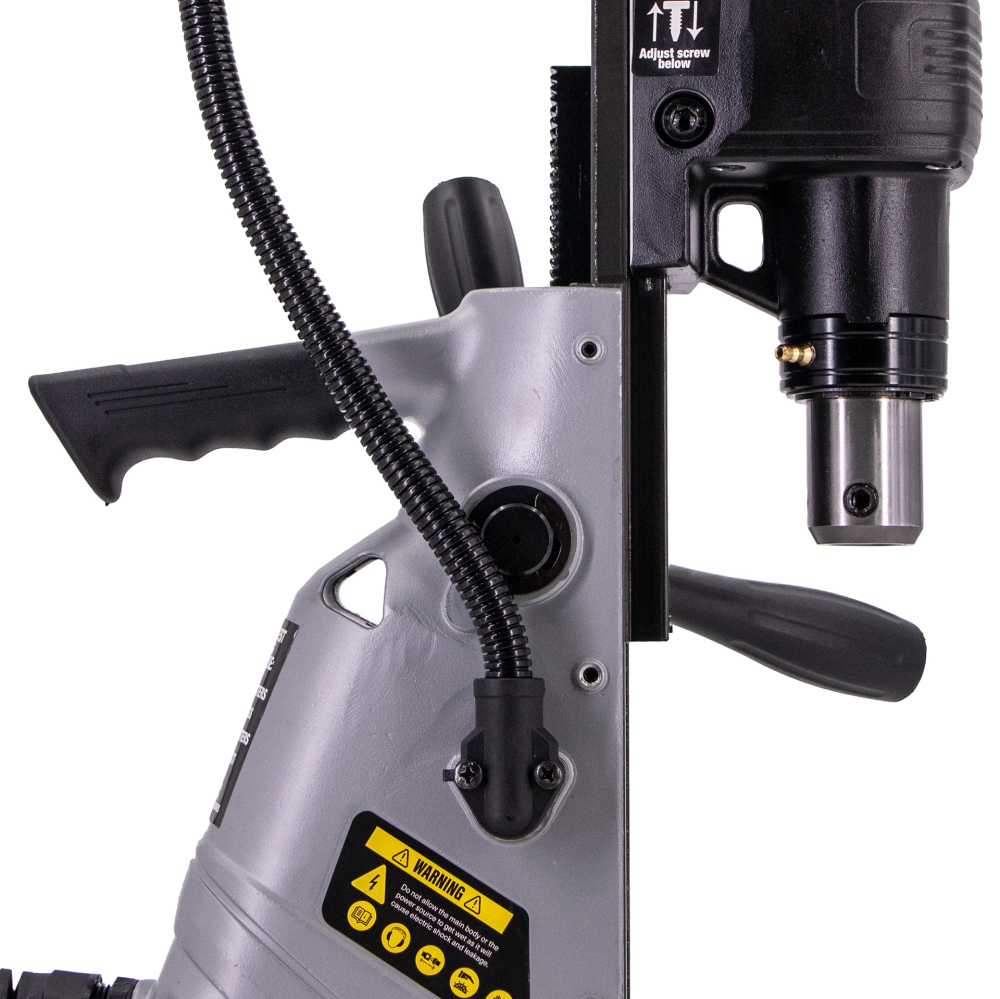

  • Maximum stroke of 210mm allowing for drilling depths of up to 150mm
  • Can be used with 13mm chuck and adaptor set (JEICA-13MM/19)

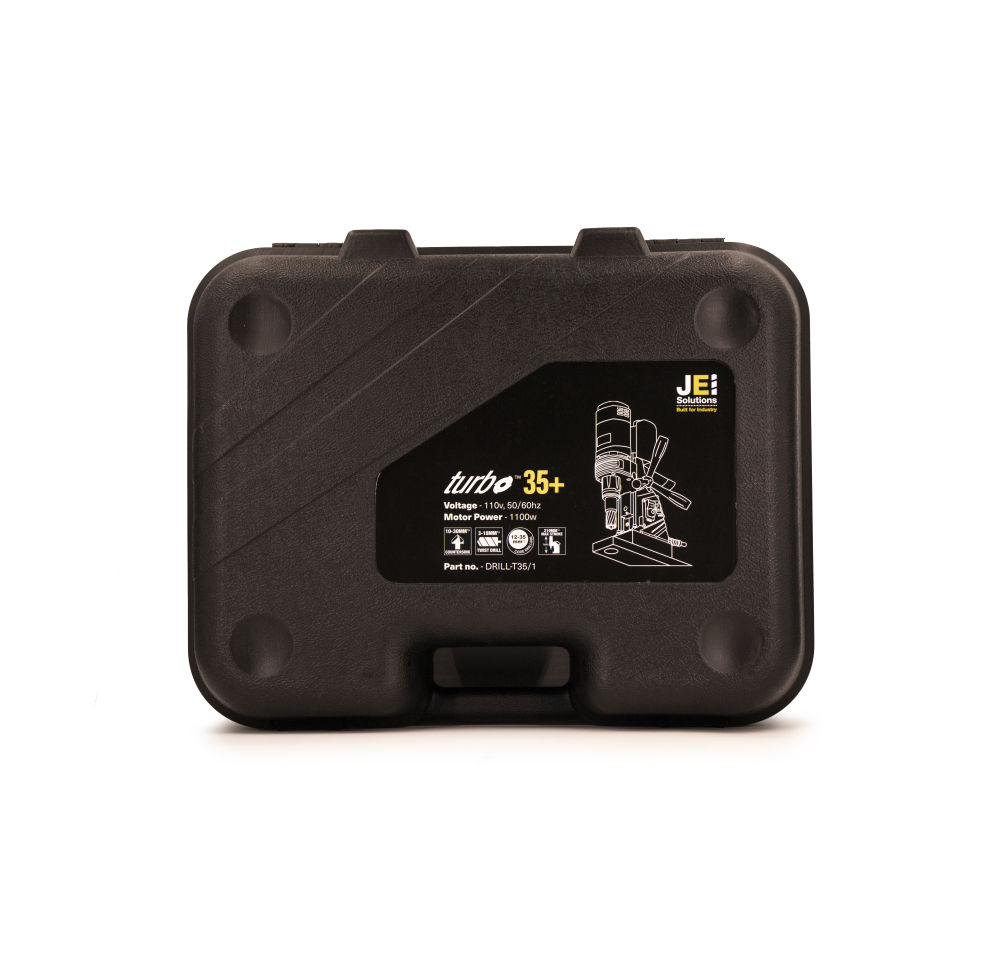

  • Supplied in hardened carry case

Sleek, lightweight and versatile, the Turbo™ 35+ provides a practical hole making solution, with its added benefit of an adjustable motor, providing a longer cutting reach than other machines in its size range.

SPECIFICATIONS

Model Turbo™ 35+

Weight 10.5kg

Spindle 19mm

Cutter Capacity 35mm Ø x 150mm depth of cut

Twist Drill Capacity 13mm (with chuck)

Countersink Capacity 30mm

Tapping Capacity N/A

Reaming Capacity N/A

Motor 1100 watts

Height Min/Max 375/ 580 mm (including cable/gland)

Length 275 mm

Width 181 mm Including Handles

No of Geared Speeds 1 Fixed Speed

RPM No load 720 RPM, loaded 450 RPM

Magnet Deadlift (on 25mm plate) 1000 kg on 1" Plate (9600 N)

Magnetic Base Dimensions 168 mm x 80 mm

Noise Level < 90dB

Vibration Level < 2.5 m/s2

Voltage / Part Number 110 V - DRILL-T35/1

240 V - DRILL-T35/2

Shipping Weight 15.8kg

Shipping Dimensions 55 x 45 x 22 cm

MPNDRILL-T35/2
BRANDJEI
WEIGHT10.5kgs
ConditionNew
