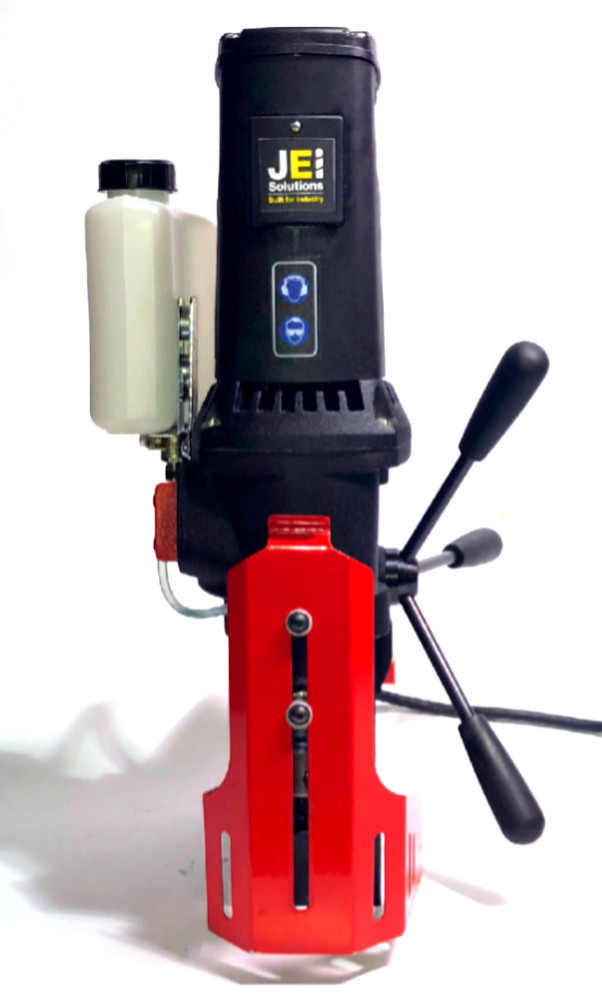

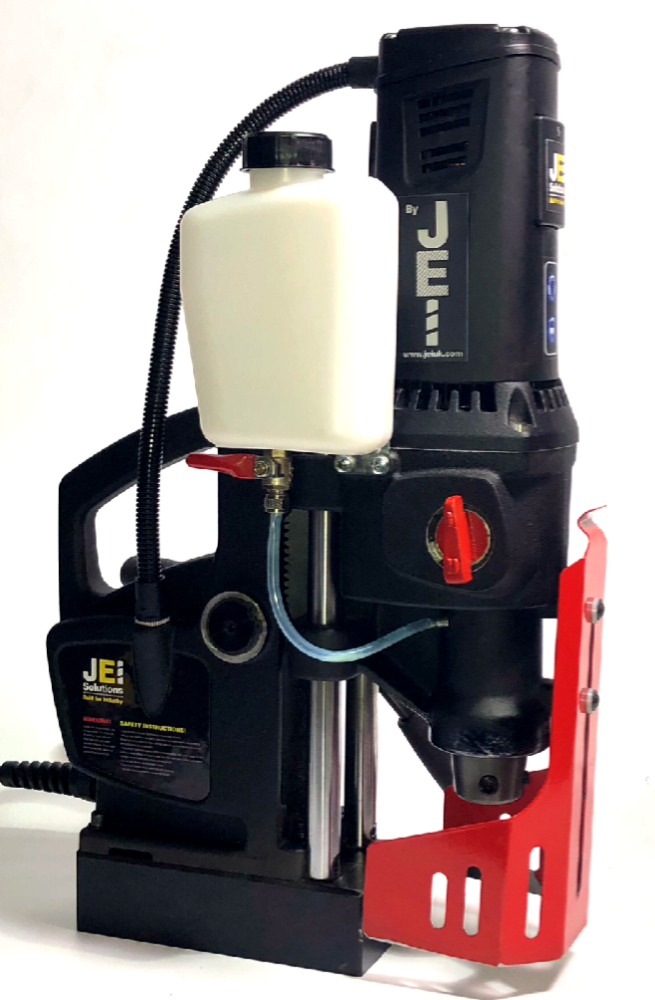

JEI MidiBeast™ 240V

Stock Code: PTJEIMBD240
MPN: DRILL-MBD/2

Descriptions

A Rugged Performer, designed for Intensive Drilling Applications

The MiniBeast™ has got a big brother. Designed to lessen the load on smaller magnetic drilling machines, to make sure heavier drilling applications which require larger holes can be completed in time and without machine overload.

1600 W powerful motor with heavy duty 2 speed gearbox.
Self aligning slide rails for maintenance free operation.
Rigid casting designed to withstand downwards drilling force, prolonging the cutter life.

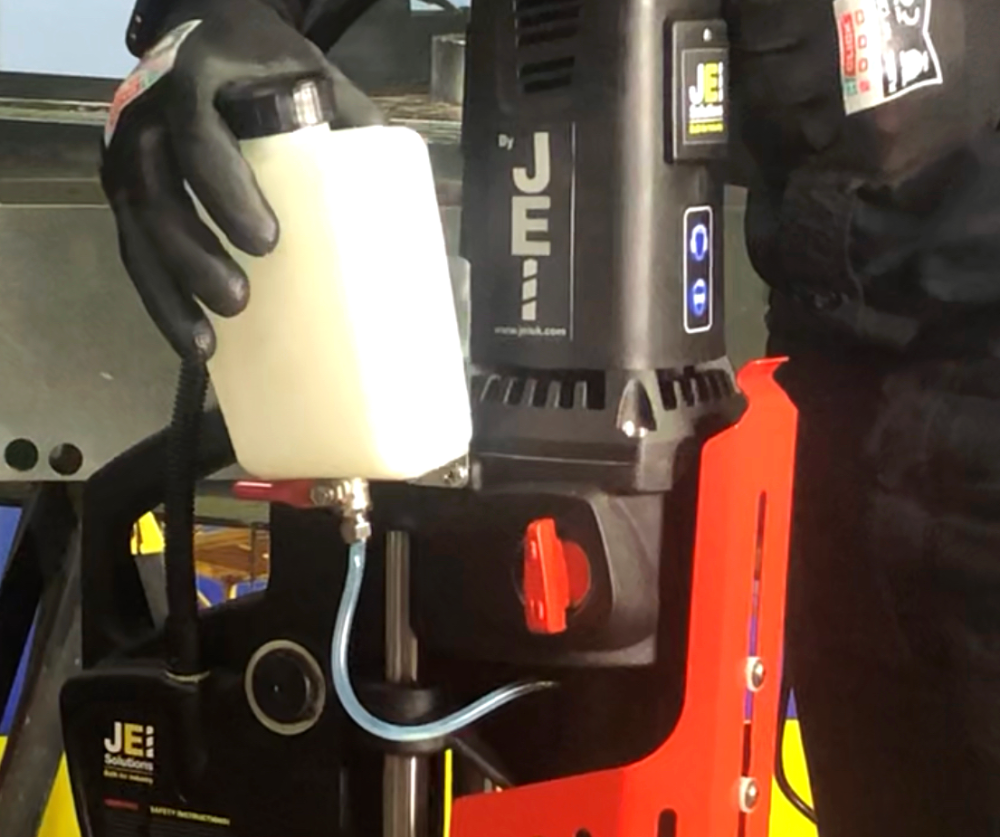

Large capacity coolant container, for more holes without re-fill.
Hidden motor cable - for added protection.

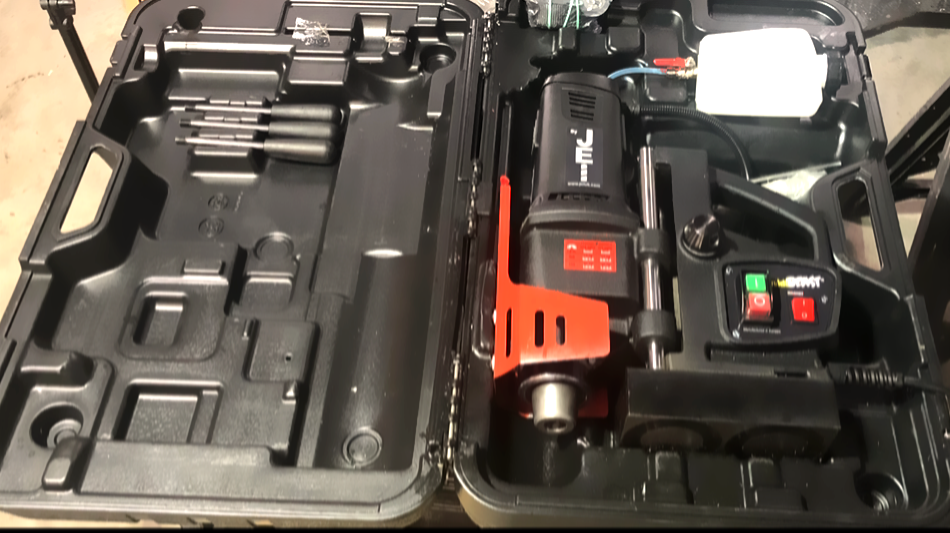

Machine includes: plastic carrying case, cooling system, 3 x spoke handles, safety strap, 4 mm T handle wrench and operator's manual.

Designed specifically for use with either TCT or HSS annular broaching cutters up to 65mm diameter with a direct feed 19mm (3/4") shank drive, to increase the stability of the cutting process, reduce run out and extend tooling life.

SPECIFICATIONS

Model MIDIBEAST™

Weight 17KG

Cutter Capacity 65mm Ø x 3" depth of cut

Twist Drill Capacity 12mm with optional Turbo™ twist drills

Motor 1600 watts

Height Min/Max 420 / 511

Length 350mm

Width 215mm (with spoke handles)

RPM 2 Fixed Speed (loaded 160/390 RPM)

Magnetic Base Dimensions 180mm x 90 mm

Magnet Deadlift (on 25mm plate) 1122KG on 1" Plate (11000 N)
