Stock Code: PTJEILP35P110
MPN: DRILL-LP35P
£809.80 (exc VAT) per 1
£971.76 (inc VAT)
Quantity: - +

PREMIUM LOW PROFILE DRILLING MACHINE, IDEAL FOR USE WITH HSS OR TCT CUTTERS

  • Ultra-low fixed working height only 176 mm.
  • Extremely low weight of just 9.5 kg.
  • Compact design perfectly suited to space restricted areas.

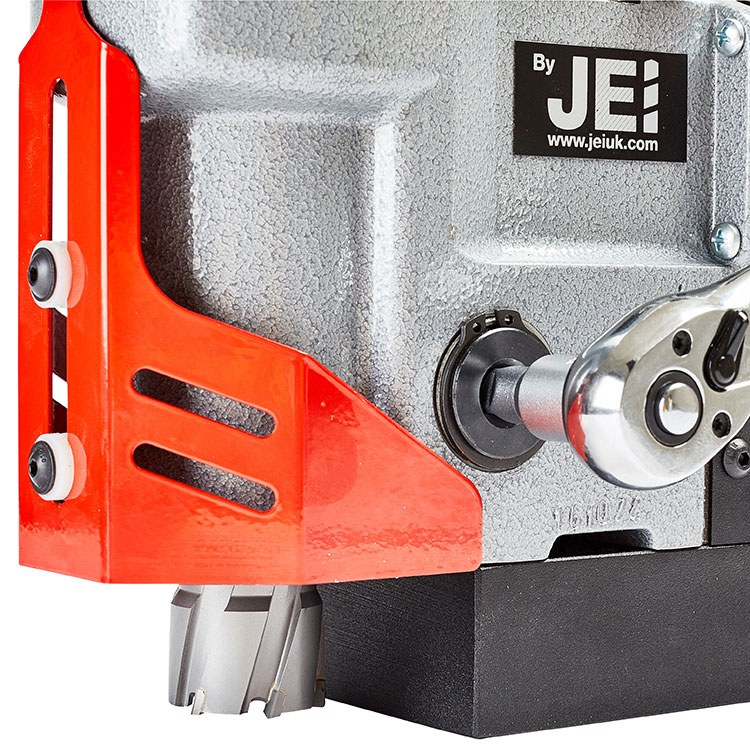

  • Maximum drilling diameter of 35 mm with annular cutters.
  • Will accept standard length (35 mm) tungsten carbide annular cutters.
  • Positive quill drive for close tolerance holes.
  • Accepts short series twist drills with 19.05 mm (3/4”) weldon shank.
  • Integrated safety guard.
  • Detachable feed ratchet handle can be fixed from either left or right side.
  • Lifting handle for easy transportation.

With its compact design, the MiniBeast™ LP35+ is ideal for drilling in those smaller spaces. The LP35+ packs a powerful punch at only 176mm in height and 9.5kg in weight, making it perfect for structural site work.

SPECIFICATIONS


Model MiniBeast™ LP35+

Spindle 19 mm

Weight 9.5 kg

Max Drilling 35 mm

Max. Drilling Depth 20 mm with HSS Turbo™ Steel annular cutter. 32 mm with Turbo™ Tough TCT annular cutter

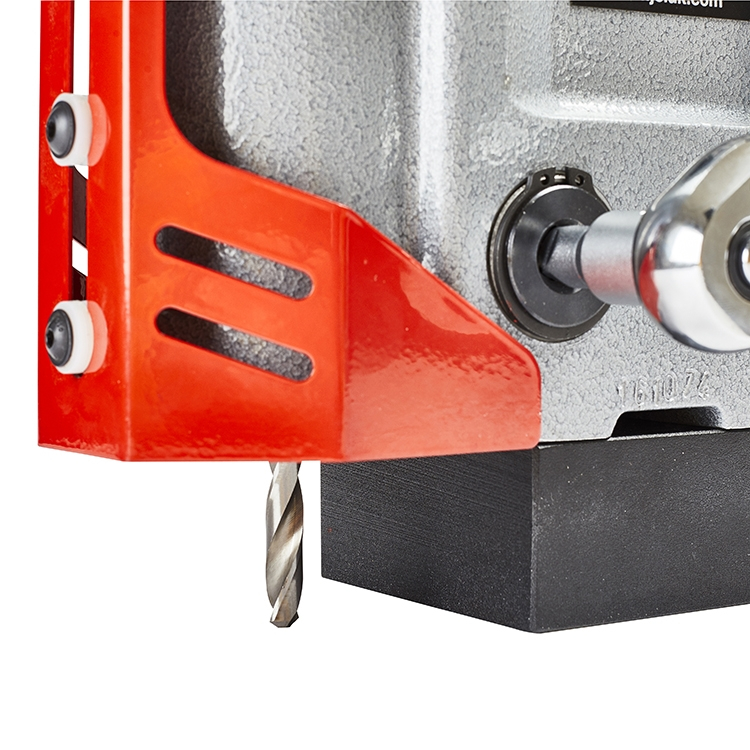

Twist Drill Capacity 12 mm Ø with optional Turbo™ Twist drills

Countersink Capacity 30 mm

Motor 920 W

RPM 1 Fixed Speed no load 520 RPM loaded 350 RPM

Height (Fixed) 176 mm

Length x Width 380 x 147 mm

Magnetic Base L x W 165 x 80 mm

Magnet Deadlift 910 kg on 1” Plate (8900 N)

Noise Level < 90dB

Vibration Level < 2.5 m/s2

Voltage/ Part no 110 V – DRILL-LP35P/1 240 V – DRILL-LP35P/2

Shipping Weight 12.4 kg

Shipping Dimensions 490 x 380 x 190 mm

MPNDRILL-LP35P
BRANDJEI
WEIGHT9.5kgs
ConditionNew
Voltage110V
