Stock Code: PTJEIMBCP240
MPN: DRILL-MBCP/2
£1,189.70 (exc VAT) per 1
£1,427.64 (inc VAT)
Quantity: - +

For drilling pipes, convex and concave surfaces.

  • Easily swivels into position.

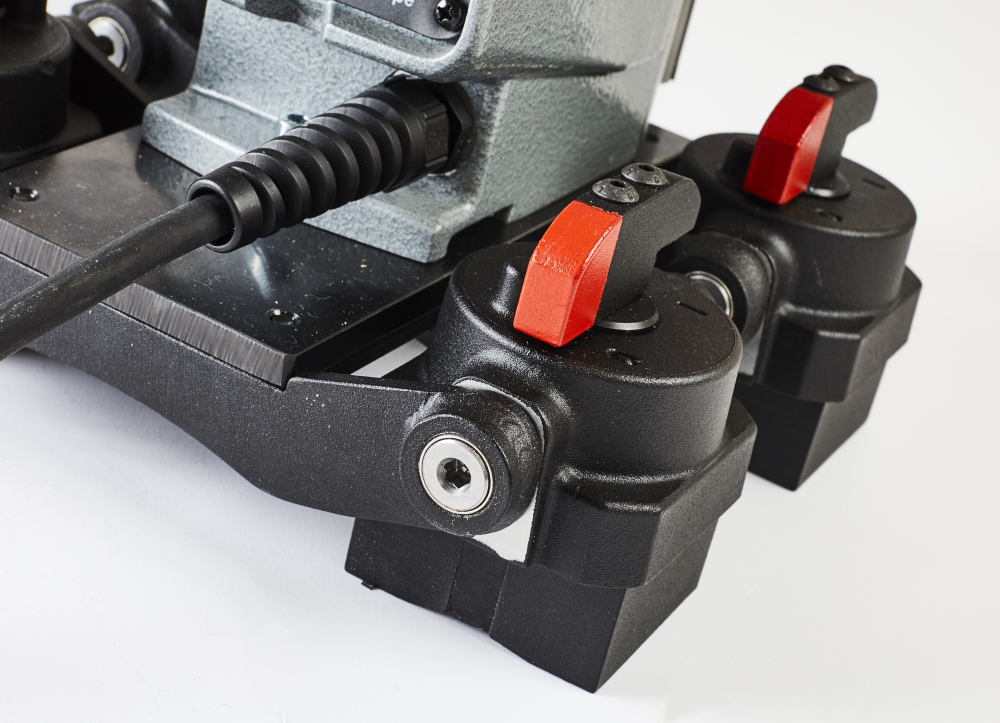

  • Four permanent magnetic bases.
  • Holds onto pipes with an outside radius of ØR300 mm.
  • Holds onto pipes with an inside radius of ØR500 mm.
  • Compact size and weight - ideal for site work.
  • Internal coolant reservoir - ensuring maximum cutter life.
  • Self correcting slide rails - for maintenance free operation.
  • Light-weight - only 15kg.
  • Hidden motor cable - for added protection.

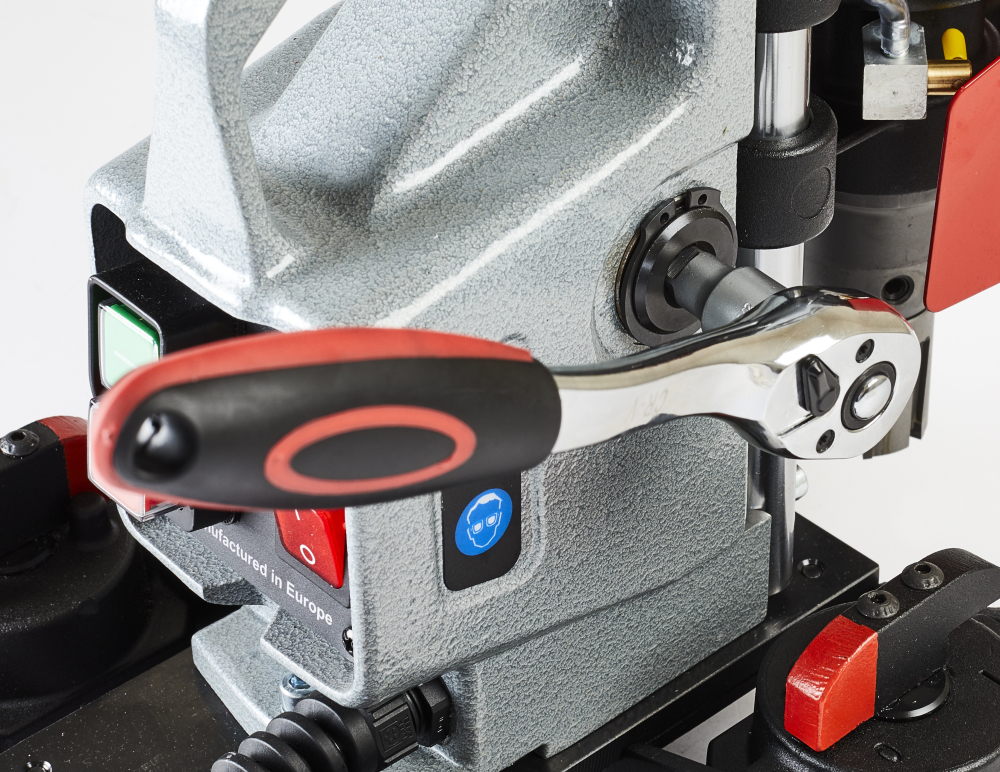

  • Detachable feed ratchet handle.

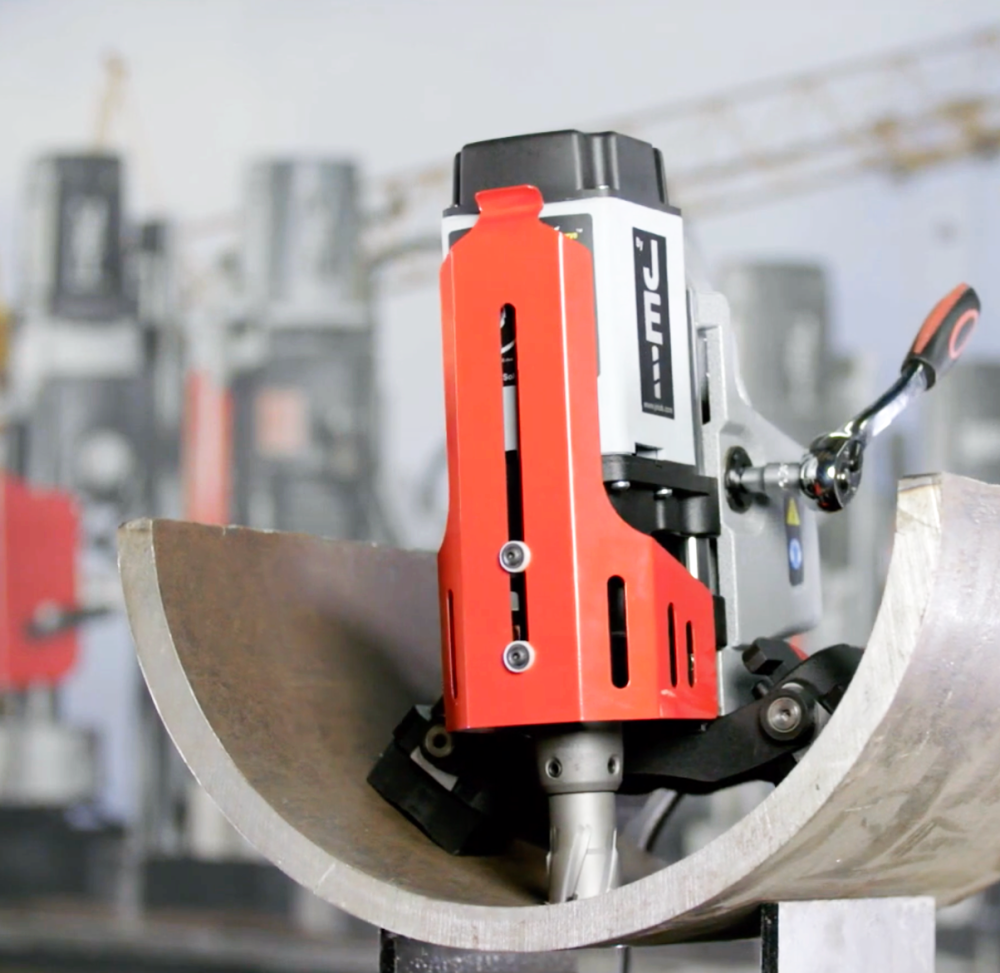

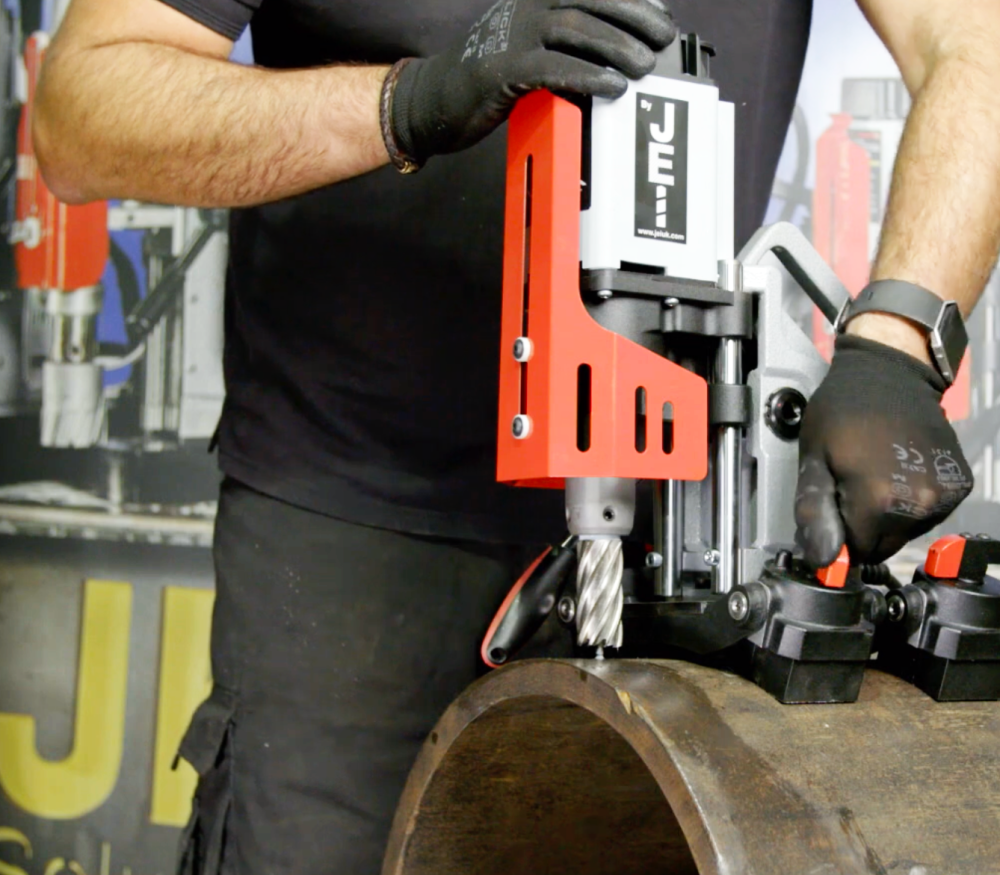

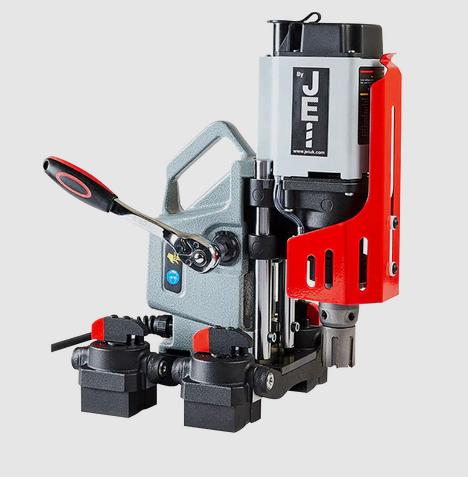

The MiniBeast™ Curve is designed to cut holes in steel pipes, convex and concave surfaces, without the need for additional clamping attachments.

SPECIFICATIONS

Model MiniBeast™ Curve

Weight 15 kg

Max Stroke 55

Cutter Capacity 35 mm Ø x 35 mm Depth

Height min/max 315 / 390 mm

Length x Width 300 x 245 mm

Magnetic Base L x W 250 x 230 mm

Magnet Deadlift 600 kg on 1” Plate (6000 N)

Min. Material Thickness 10 mm

MIn. Pipe Diameter (Outside) 300 mm Ø

Min. Pipe Diameter (Inside) 1000 mm Ø

Min. Radius R 500

Voltage/ Part no 110 V – DRILL-MBCP/1 ~ 240 V – DRILL-MBCP/2


MPNDRILL-MBCP/2
BRANDJEI
WEIGHT15kgs
ConditionNew
Voltage240V
